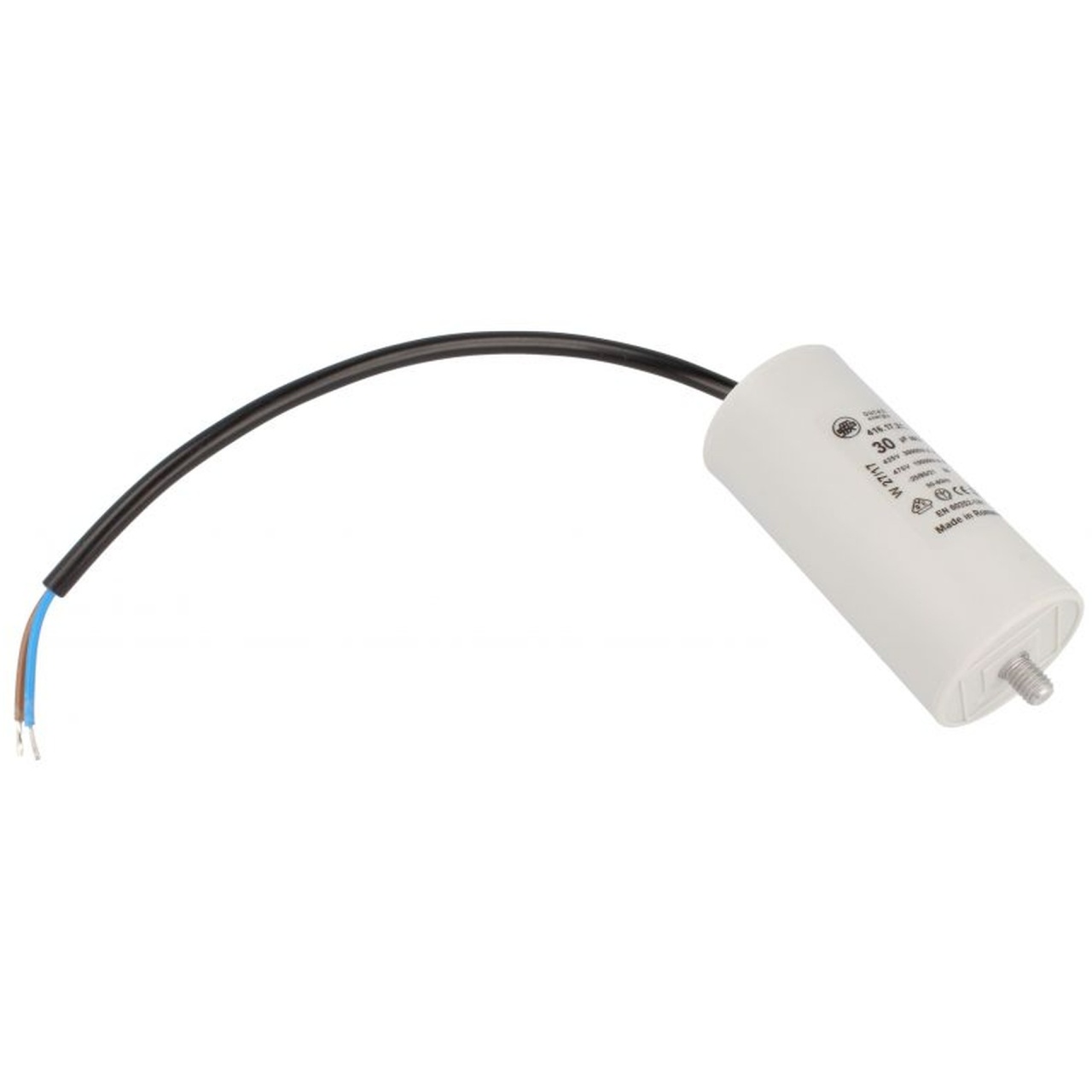

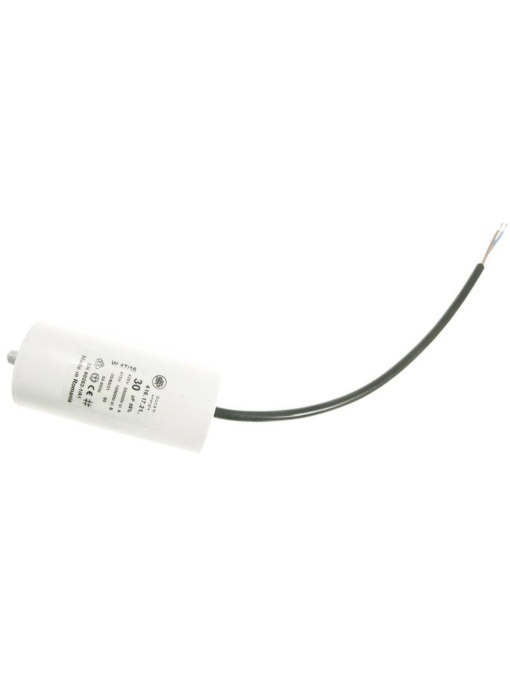

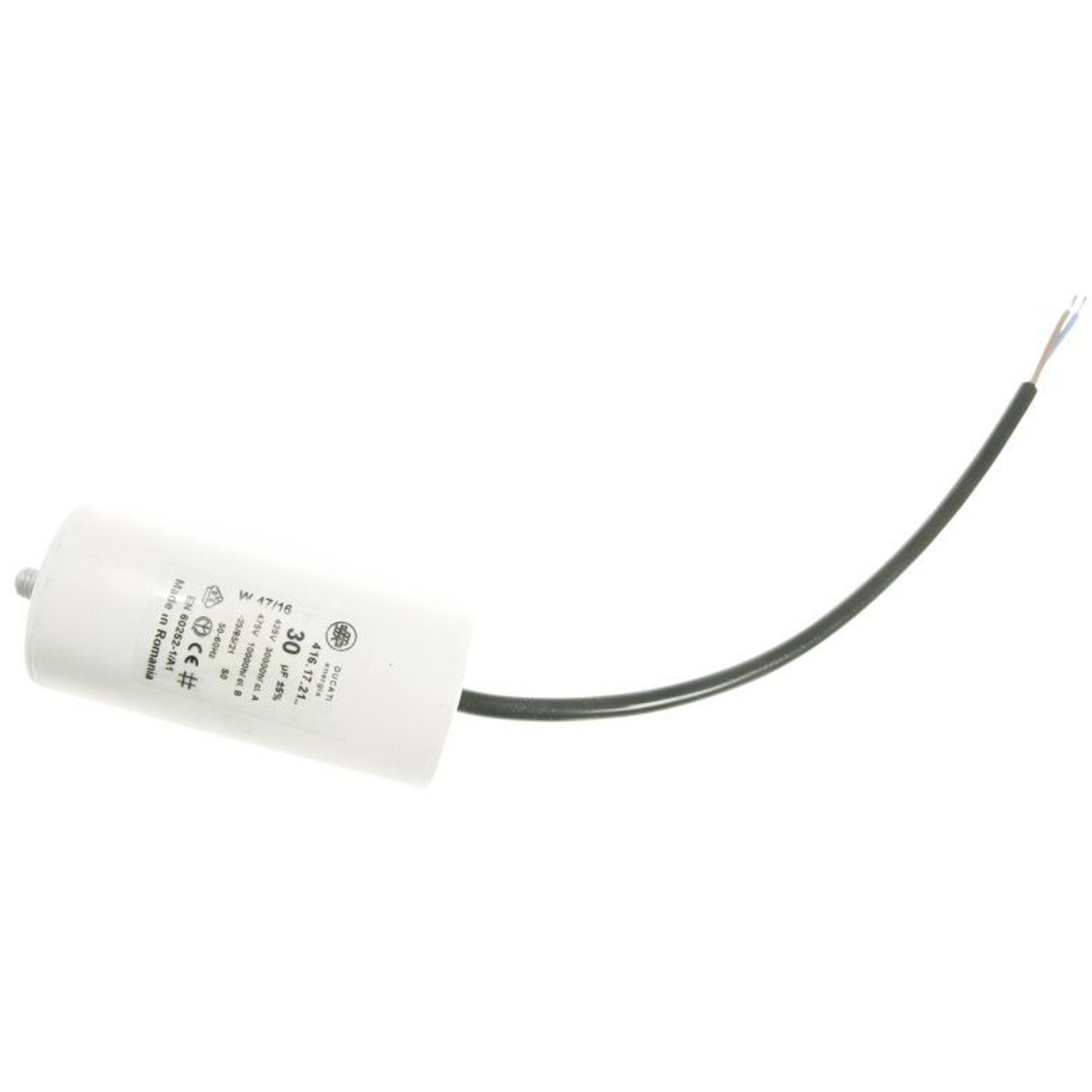

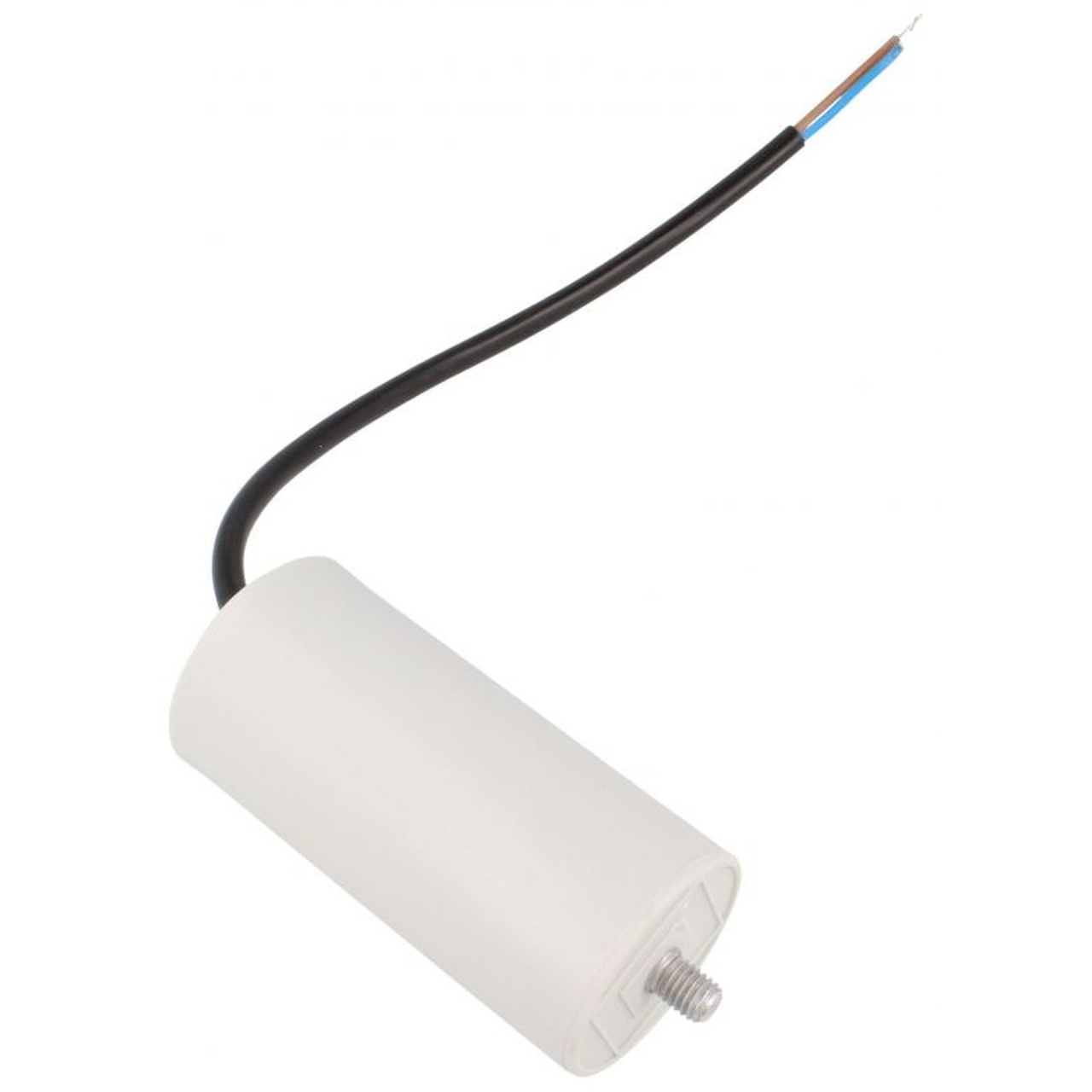

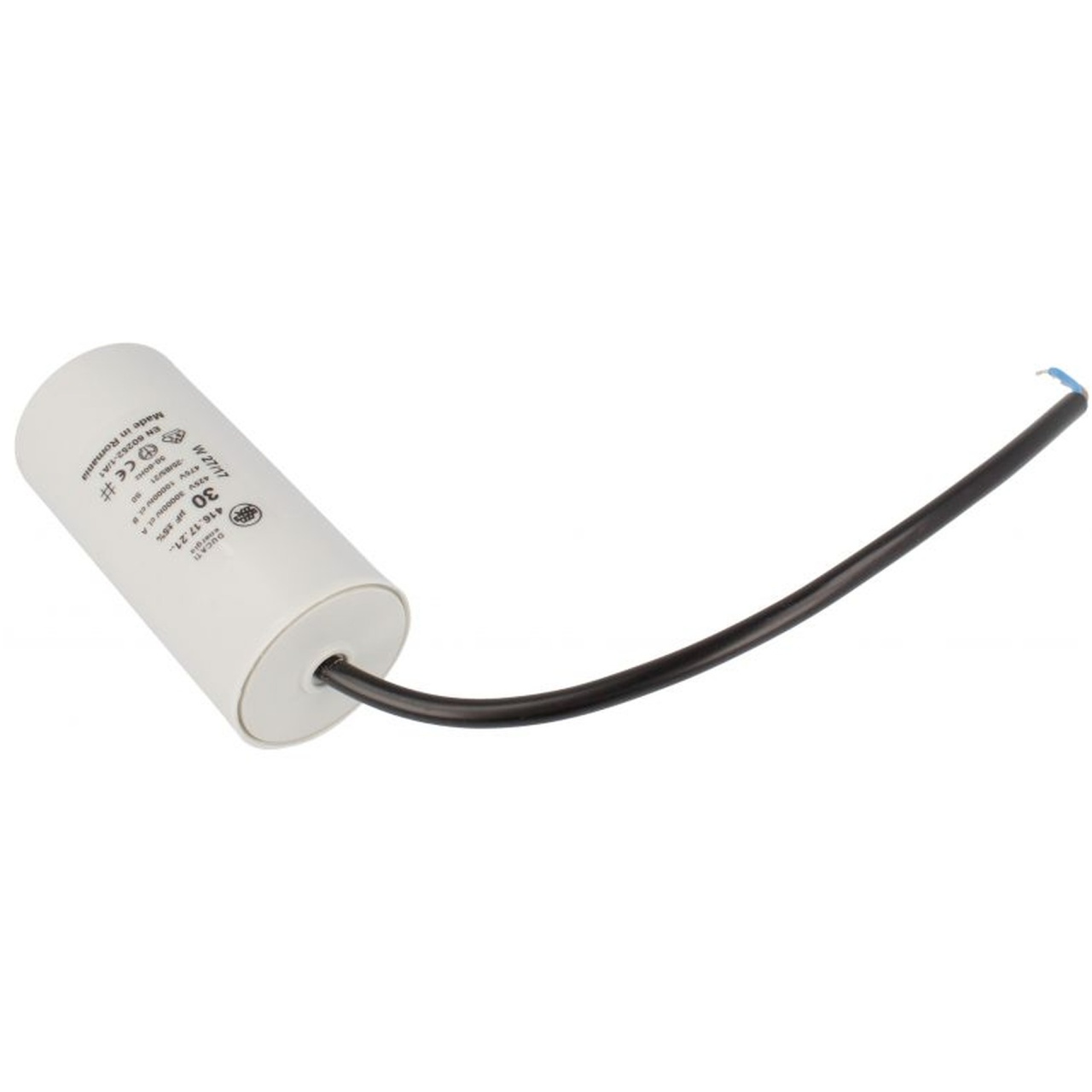

Motor start capacitor with cable 30uF / 450V, Ducati 416172114

Motor start capacitor with cable Ducati 416172114 is an electrical component used in certain motors and equipment requiring a capacitance of 30uF and a rated voltage of 450V.

The component contributes to the correct operation of the motor, according to the design of the equipment in which it is installed. It is equipped with a cable for connection, allowing integration into appliances compatible with this type of electrical connection.

The capacitor may need replacement when the motor starts hard, hums without rotating, operates intermittently, or no longer develops the necessary torque. These symptoms may have other causes, so technical verification is recommended before replacing the part.

For the correct selection, the following must be checked:

• the code of the existing part;
• the capacity of 30uF;
• the nominal voltage of 450V;
• the type and length of the cable;
• the dimensions of the casing;
• the fixing system;
• the model of the motor or equipment.

The part is identified by the code Ducati 416172114. By ElectroPiese and iauSiRepar, compatibility can be verified by code, capacity, voltage and appliance model.

A capacitor may seem like just a silent capsule attached near the motor, but without the correct parameters, the motor may remain at the starting line.

Technical specifications

• Product type: motor start capacitor
• Brand: Ducati
• Product code: 416172114
• Capacity: 30uF
• Nominal voltage: 450V
• Connection: with cable
• Use: compatible motors and equipment
• Compatibility: check by code, electrical values, dimensions and mounting system

Attention during installation

The capacitor can retain electrical energy even after the appliance is disconnected. Replacement and discharge must be carried out under safe conditions, preferably by a qualified technician. Do not replace the part with a capacitor of a different capacity without confirming the appliance specifications.

Frequently asked questions

What capacity does the Ducati capacitor 416172114? have?
The capacitor has a nominal capacity of 30uF.

What voltage is it designed for?
The indicated nominal voltage is 450V.

Is the capacitor equipped with wires?
Yes, the product is equipped with a cable for connection.

How do I check if it is suitable for my motor?
Check the existing part code, capacity of 30uF,, voltage of 450V,, dimensions, cable and mounting system.

Can a capacitor with a different capacity be installed?
Changing the capacity without confirming the manufacturer's specifications is not recommended, as it may affect motor starting and operation.

What are the signs of a faulty capacitor?
The motor may start with difficulty, hum, stop, or require a mechanical impulse to start. The diagnosis must be confirmed by technical inspection.

Associated products

Depending on the equipment, connection cables, electrical terminals, mounting brackets, motors, relays, thermal protections or other compatible electrical components may be required.
