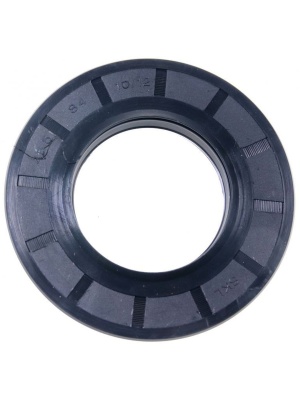

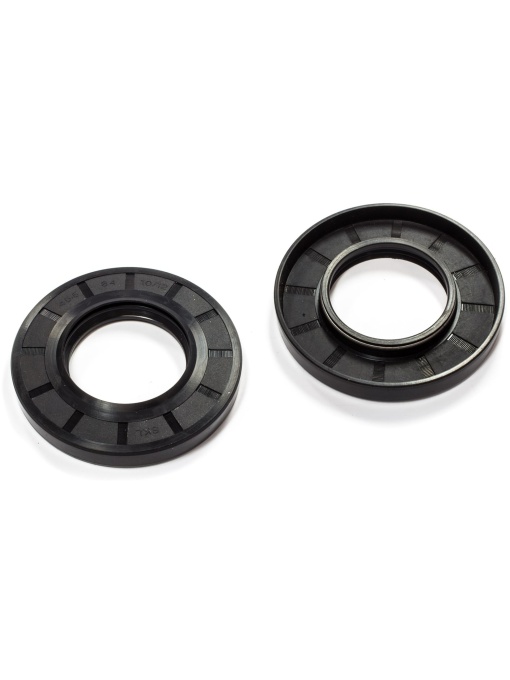

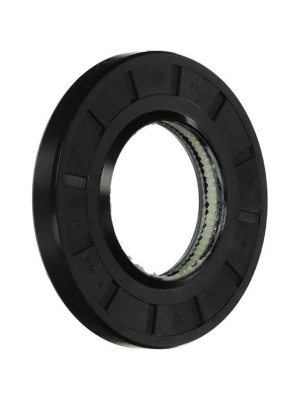

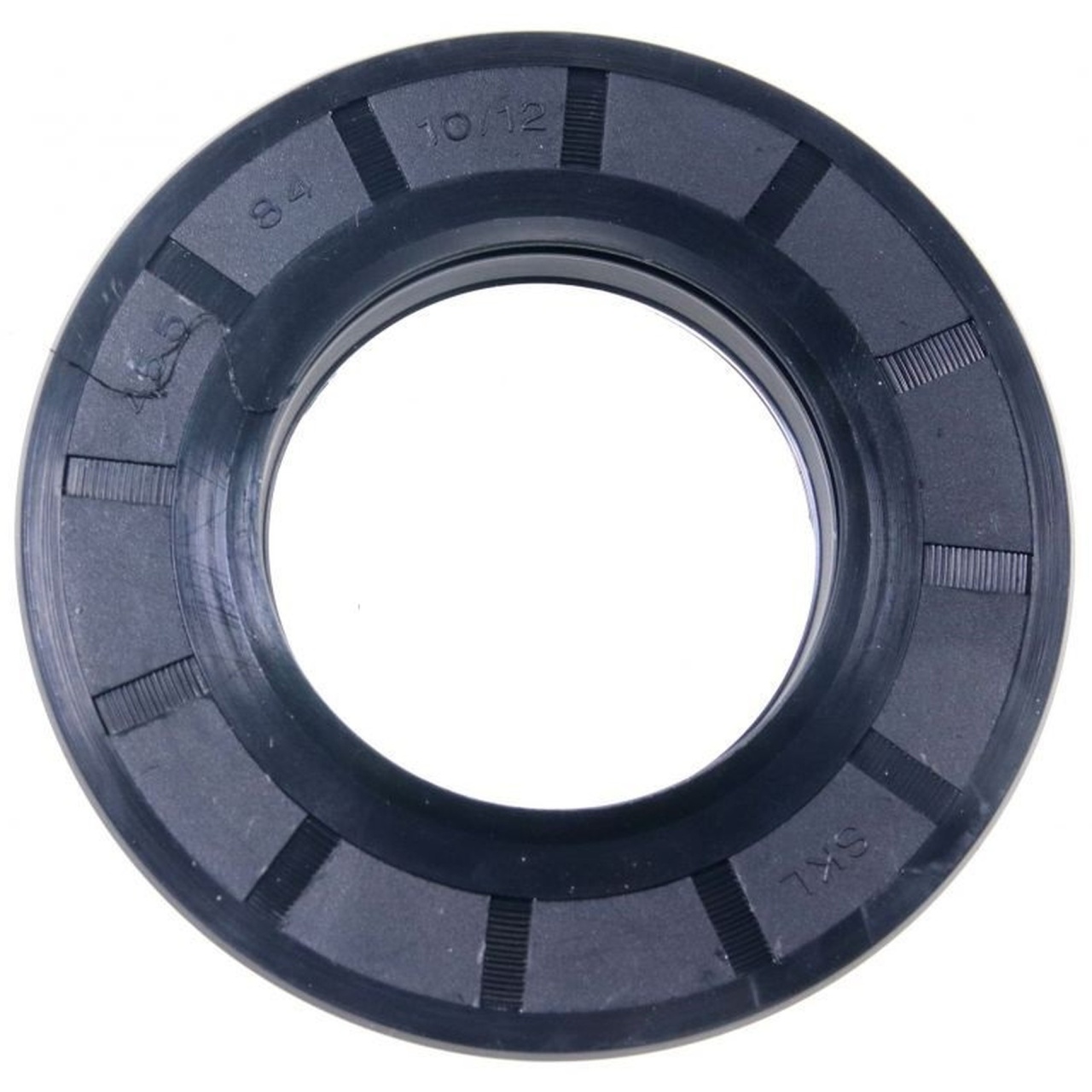

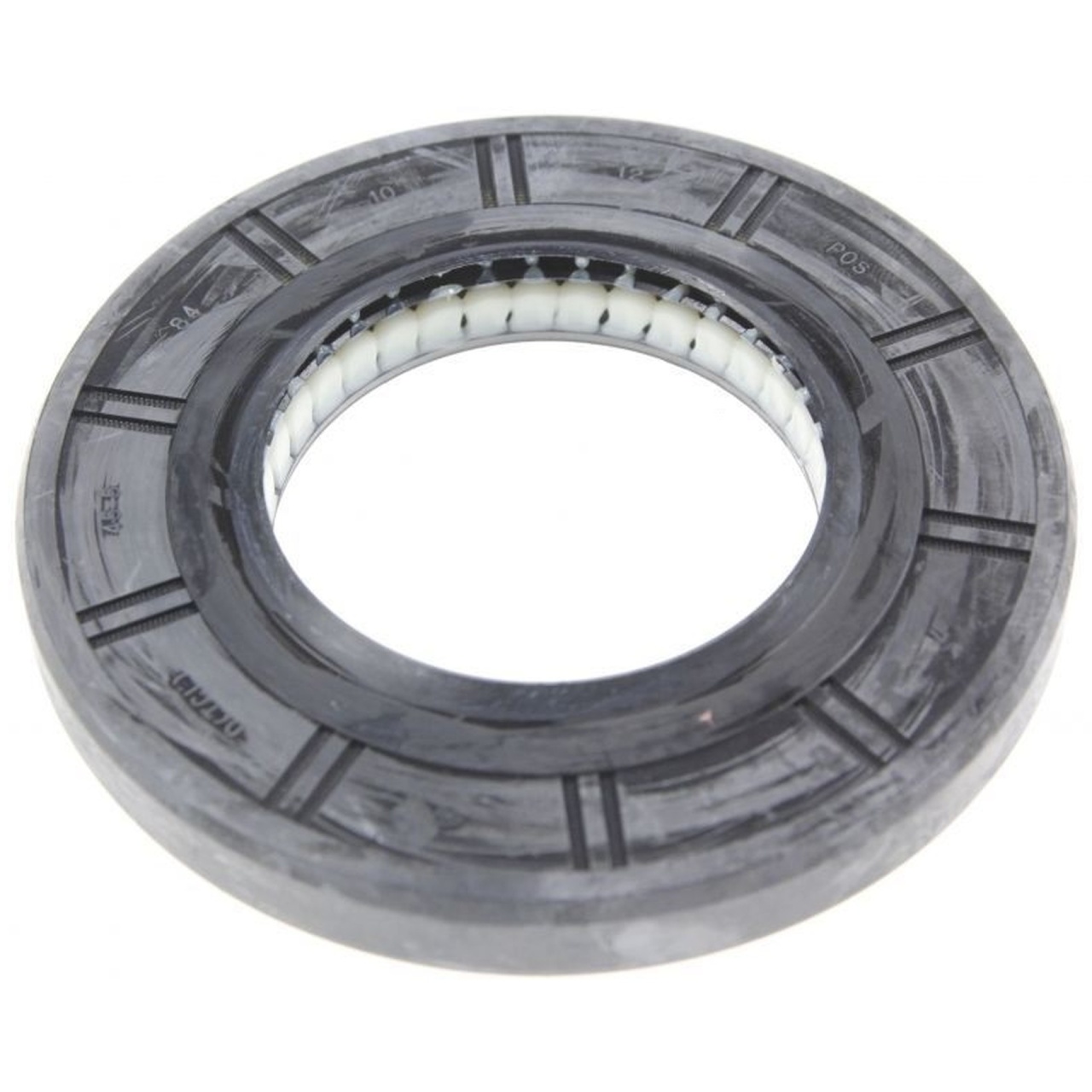

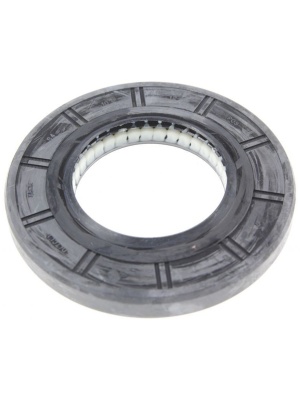

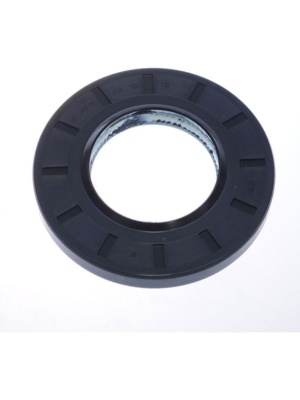

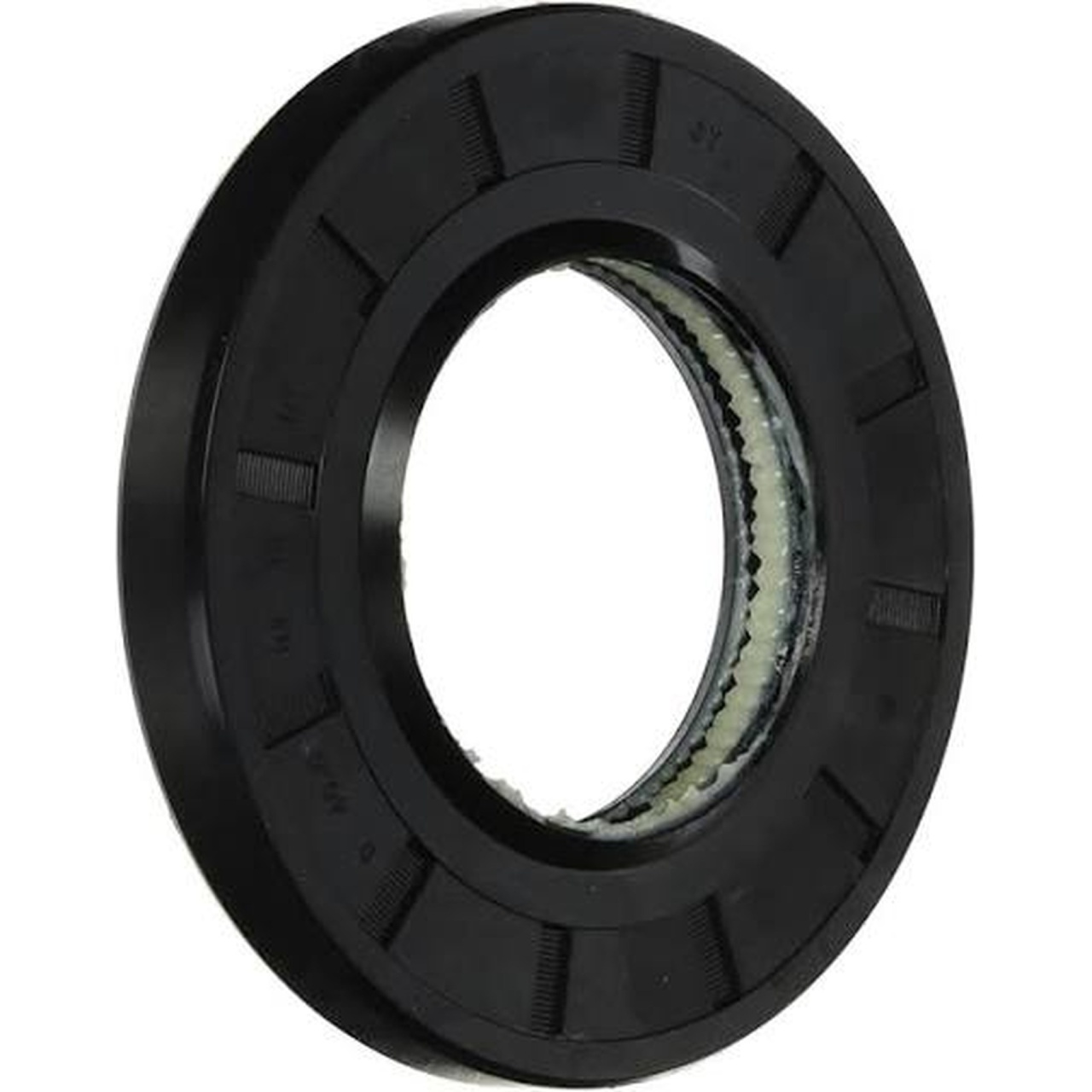

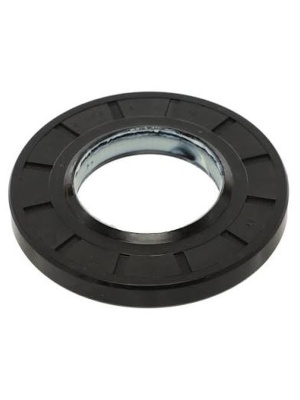

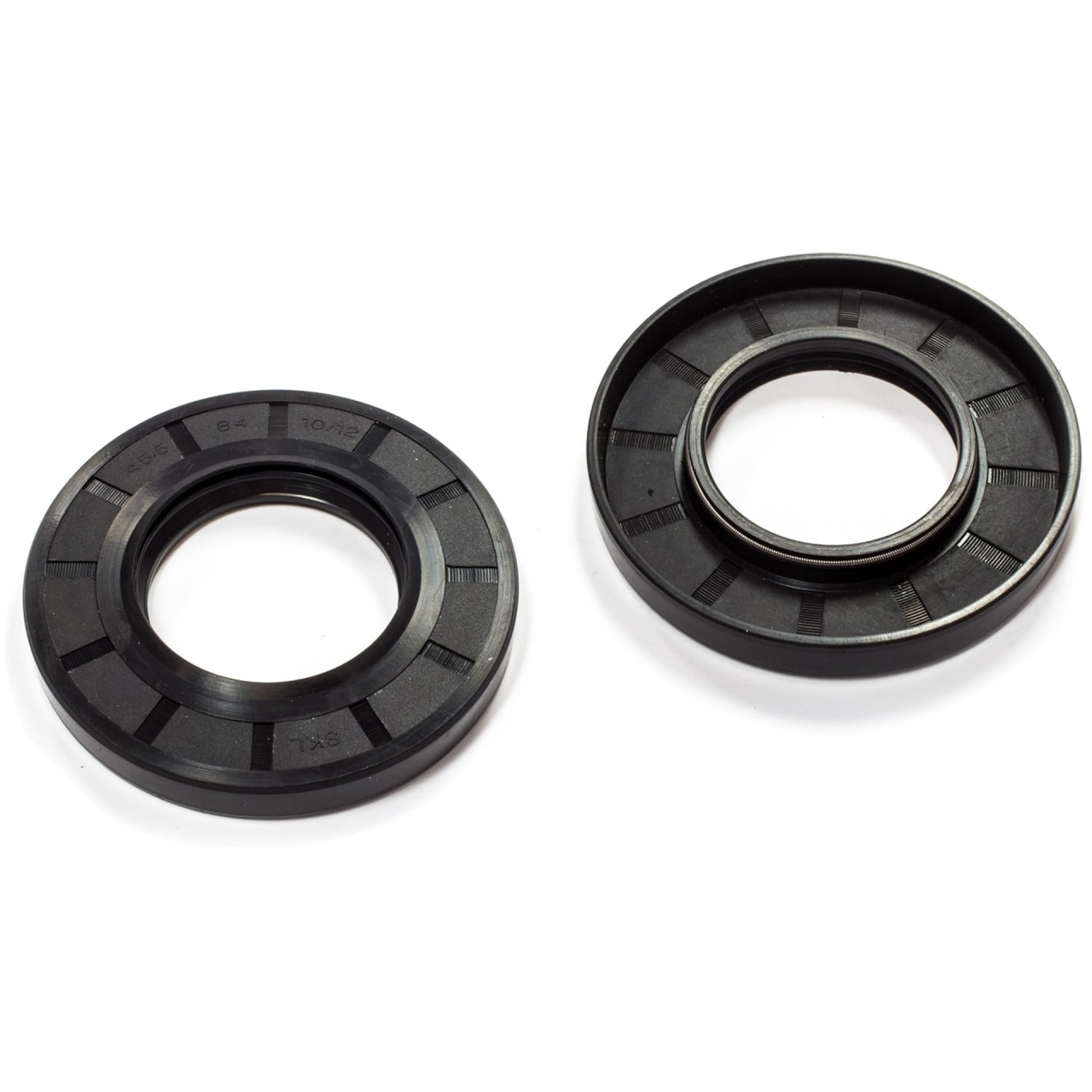

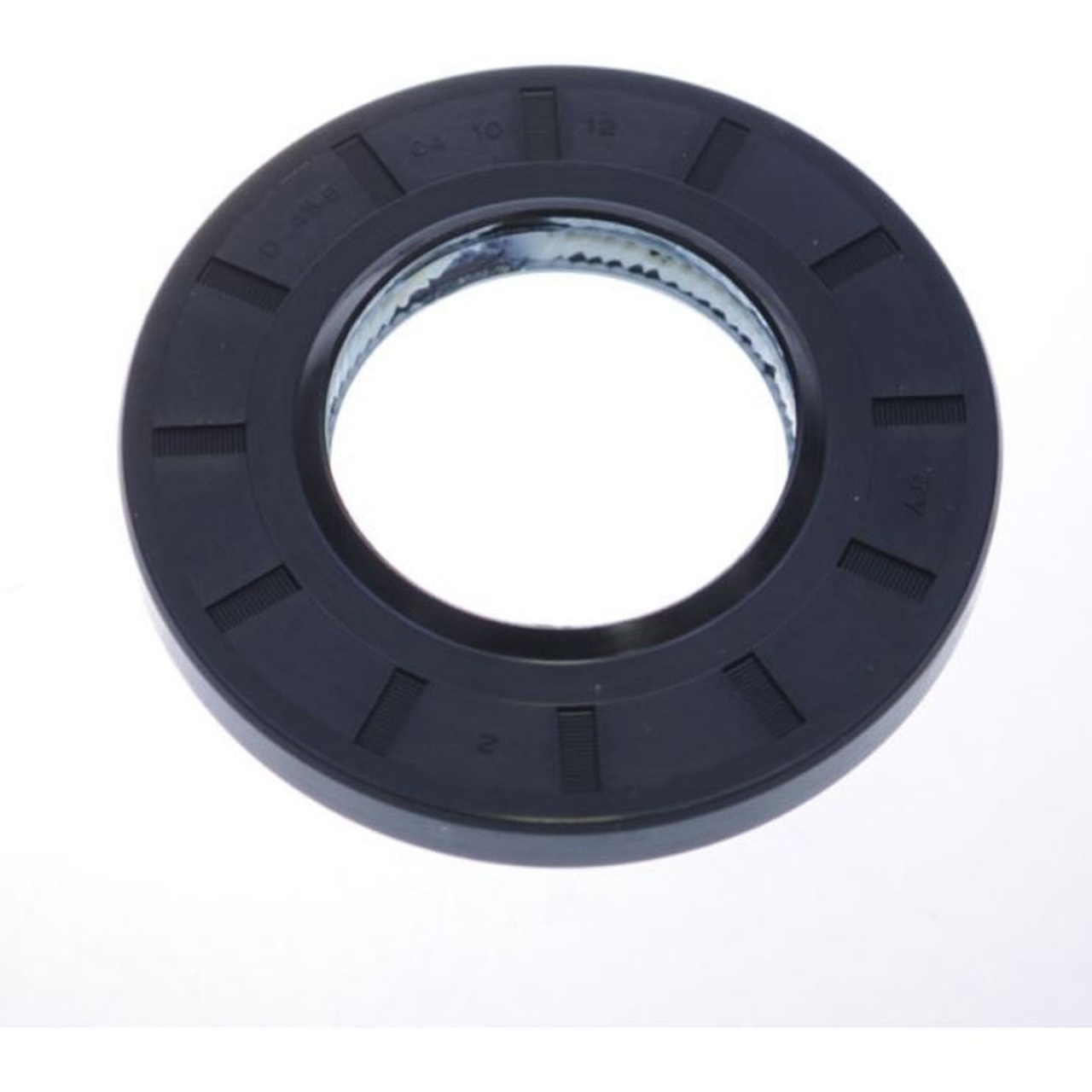

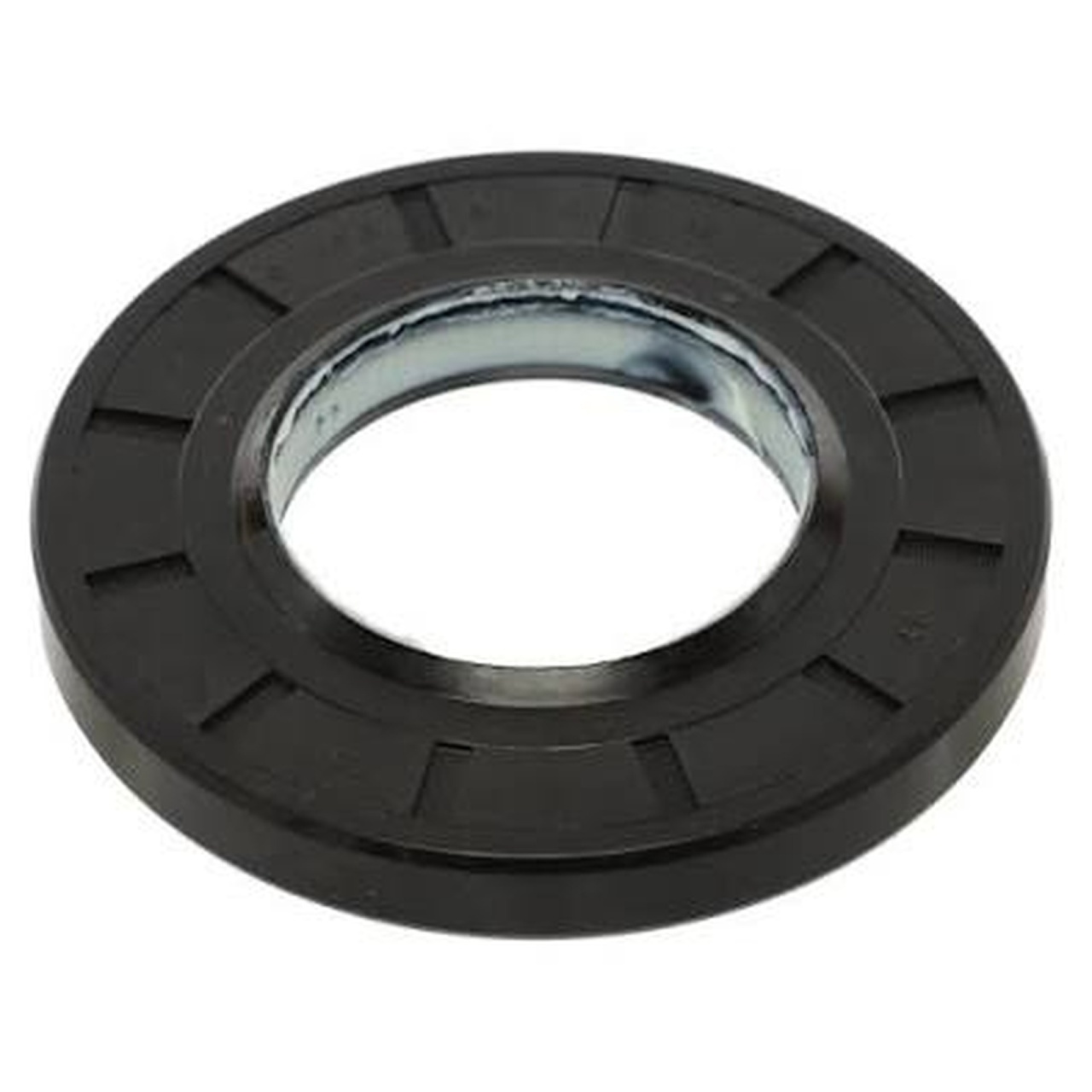

Washing machine seal 45,5x84x10/12 Samsung DC62-00156A compatible

The seal for Samsung washing machine DC62-00156A is a compatible part intended for certain Samsung washing machine models. The component has a sealing role and is mounted in the area of the tub, shaft and bearing assembly.

The seal helps protect the bearings from water, detergent and impurities that may enter during operation. When this part is worn, hardened, cracked or damaged, water can reach the bearings, causing noise, drum play or bearing assembly failure.

The product has dimensions 45,5 mm inner diameter, 84 mm outer diameter and 10/12 mm thickness, being black in color black. For correct selection, check the original part code, the dimensions of the existing seal, and the full model of the washing machine.

Through ElectroPiese and iauSiRepar, compatibility can be verified by the code Samsung DC62-00156A, the appliance model, and the part dimensions. For seals, even a small diameter difference can turn the sealing into an overly optimistic promise.

Product features

• Product type: washing machine seal
• Associated brand: Samsung
• Product code: DC62-00156A
• Inner diameter: 45,5 mm
• Outer diameter: 84 mm
• Thickness: 10/12 mm
• Color: black
• Part type: compatible
• Role: shaft sealing / bearing protection
• Compatibility: check by code, dimensions and appliance model

Frequently asked questions

What dimensions does the Samsung DC62-00156A? seal have?
The seal has an inner diameter of 45,5 mm, outer diameter of 84 mm and thickness of 10/12 mm.

Is it an original or compatible part?
The product is presented as compatible part.

What is the role of the seal in the washing machine?
The seal seals the shaft area and helps protect the bearings from water and detergent.

When should it be replaced?
When it is worn, hardened, cracked, allows water leaks or when changing the washing machine bearings.

How do I check compatibility?
Check the dimensions 45,5 x 84 x 10/12 mm, the code DC62-00156A and the exact model of the Samsung washing machine.

Is it recommended to change the seal together with the bearings?
Yes, in many repairs of the drum-bearing assembly, the seal is replaced together with the bearings for proper sealing.

Associated products

Depending on the repair, compatible bearings, seal grease, gaskets, bearing kit or other tub assembly components may be needed.

Compatibility:

SAMSUNG H1245AGS-YLP
SAMSUNG H1255AGS/XEF
SAMSUNG H1255AGS/XEN
SAMSUNG Q1657ATGW/SWS
SAMSUNG Q1657ATGW/XAG
SAMSUNG Q1657ATGW/XEG
SAMSUNG Q1657ATGW/XEN
SAMSUNG Q1657ATGW1/XAG
SAMSUNG Q1657TGW/XEN
SAMSUNG Q1657VGW/XEN
SAMSUNG WD1142XVR/YLP
SAMSUNG WD1172XVM/XSG
SAMSUNG WD12F9C9U4W/EF
SAMSUNG WD12F9C9U4W/EU
SAMSUNG WD12J8400GW/EG
SAMSUNG WD12J8400GW/EU
SAMSUNG WD17H7300KP/FH
SAMSUNG WD7101CKW/YLE
SAMSUNG WD8122CVB/YLP
SAMSUNG WF-M124ZAU/YLP
SAMSUNG WF0806X8E/XEU
SAMSUNG WF0806X8N/XEU
SAMSUNG WF0806Z8C/XEN
SAMSUNG WF0806Z8C3/XEN
SAMSUNG WF0806Z8E/SWS
SAMSUNG WF0806Z8E/XEE
SAMSUNG WF0806Z8E/XEN
SAMSUNG WF0806Z8E3/SWS
SAMSUNG WF0806Z8W/XEN
SAMSUNG WF0806Z8W3/XEN
SAMSUNG WF0816Z8E/XEN
SAMSUNG WF0816Z8W/XEN
SAMSUNG WF0816Z8W3/XEN
SAMSUNG WF10826Z8E/XEG
SAMSUNG WF1124XAC/YAH
SAMSUNG WF1124XAC/YLE
SAMSUNG WF1124ZAC/SWS
SAMSUNG WF1124ZAC/XEE
SAMSUNG WF1124ZAC/XEN
SAMSUNG WF1124ZAC/XEO
SAMSUNG WF1124ZAC/XET
SAMSUNG WF1124ZAC/YLP
SAMSUNG WF12F9E6P4W/EG
SAMSUNG WF12F9E6P4W/EU
SAMSUNG WF431ABW/XEF
SAMSUNG WF7102SKP/YLP
SAMSUNG WF7102SKS/YLP
SAMSUNG WF71184ZBD/XEG
SAMSUNG WF71284ZAC/XEG
SAMSUNG WF80F7E3P6W3EN
SAMSUNG WF80F7E6P6W/EN
SAMSUNG WF80F7E6P6W3EN
SAMSUNG WF80F7E6U6X/EU
SAMSUNG WF8120NXW/XEF
SAMSUNG WF81F7E6P6W/EN
SAMSUNG WF81F7E6P6W3EN
SAMSUNG WF88F7E6P6W3EG
SAMSUNG WF90F7E6P6W/EN
SAMSUNG WF90F7E6P6W/WS
SAMSUNG WF90F7E6P6W3EN
SAMSUNG WF91F7E6P6W/EN
SAMSUNG WM1245AES/XSG
SAMSUNG WM1245AGS/XFA
SAMSUNG WM1245AGS/YKJ
SAMSUNG WM1255AGS/XEN
SAMSUNG WW10H9400EW/ET
SAMSUNG WW10H9600EW/EG
SAMSUNG WW10H9600EW/EO
SAMSUNG WW10H9600EW/EU
SAMSUNG WW10H9600EW/WS
SAMSUNG WW12H8400EW/EC
SAMSUNG WW12H8400EW/EE
SAMSUNG WW12H8400EW/EG
SAMSUNG WW12H8400EW/EN
SAMSUNG WW12H8400EW/EO
SAMSUNG WW12H8400EW/EP
SAMSUNG WW12H8400EW/ET
SAMSUNG WW12H8400EW/LE
SAMSUNG WW12H8400EW/WS
SAMSUNG WW12H8420EW/EF
SAMSUNG WW12H8420EW/EU
SAMSUNG WW12H8420EX/EU
SAMSUNG WW12K8402OW/EN
SAMSUNG WW12K8412OW/LE
SAMSUNG WW80H7600EW/EE
SAMSUNG WW80H7600EW/EG
SAMSUNG WW80H7600EW/EN
SAMSUNG WW80H7600EW/WS
SAMSUNG WW80J6600CW/EG
SAMSUNG WW80J6600CW/EN
SAMSUNG WW80J6603AW/WS
SAMSUNG WW80J6603EW/EN
SAMSUNG WW80J6603EW/WS
SAMSUNG WW80K6604QW/EN
SAMSUNG WW80K6605SW/EN
SAMSUNG WW80K7605OW/EN
SAMSUNG WW80K7605OW/WS
SAMSUNG WW81J6600CW/EN
SAMSUNG WW81K6604QW/EN
SAMSUNG WW81K7605OW/EN
SAMSUNG WW90H7600EW/EG
SAMSUNG WW90H7600EW/EN
SAMSUNG WW90H7600EW/WS
SAMSUNG WW90J6600CW/EN
SAMSUNG WW90J6603AW/WS
SAMSUNG WW90J6603EW/EN
SAMSUNG WW90J6603EW/WS
SAMSUNG WW90K6604QW/EN
SAMSUNG WW90K6605SW/EN
SAMSUNG WW90K7605OW/EN
SAMSUNG WW90M645OBX/EF
SAMSUNG WW91J6600CW/EN
SAMSUNG WW91K6604QW/EN
SAMSUNG WW91K7605OW/EN
